KOKS SMARTVAC

Caractéristiques

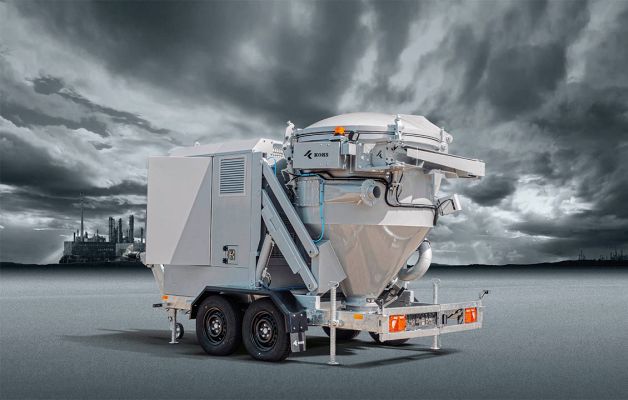

• The KOKS SmartVac self-supporting compact air displacement trailer, powered by an industrial diesel engine, is designed for industrial and construction applications and is suitable for suctioning and displacing dry substances, such as (roof) gravel, powders and other non-hazardous solid ubstances. The SmartVac is built on a 2-axle, 3.5 tons trailer with an in height adjustable trailer hook for placing behind a van. The KOKS SmartVac can also unload into big bags. The unit is built in accordance with all applicable safety standards.



  Usage
  The KOKS SmartVac is the perfect movable trailer for day-to-day suction and displacement in construction and for all general industrial applications. The advantages for health and safety, as well as an improvement of the cleaning quality, are undeniable.



  Characteristics
  The powerful tri-lobe blower gives the KOKS self-supporting compact air displacement trailer a very high suction capacity, which makes it possible to process and transport large quantities of dry substances, gravel, sand, etc. in a very short time. The user benefits from significant time savings and a huge reduction in cost.



  Versions
  The KOKS self-supporting compact air displacement trailer can be fitted with various option kits that are appropriate for your needs and for industrial and cleaning applications.

• Designed and certified for:

  • placement on a 2-axle 3.5 ton trailer with an in height adjustable trailer hook.
  • suctioning and displacing dry substances, such as sand, (roof) gravel, powders and other non-hazardous solid substances.



  Vacuum tank

  Volume:	2 m³, incl. space under the filter bags in the filter chamber.
  Material:	carbon steel EN S235JR grade, material no.1.0038.
  Tank cover:	hydraulically opening and bolting.
  Discharging:	by means of bagging.
  Loading:	by means of suctioning.
  Tank lifting device:	hydraulically 1,130 mm adjustable in height.
  Including:	6” suction connection with an internal, removable, wear resistant plate.
  	1-vibrator pneumatically operated.
  	level detectors.



  Filter chamber

  Filter cover:	hydraulically opening and bolting.
  Filter surface area:	12,5 m².
  Filter plate:	stainless steel AISI 304 grade; material no. 1.4301.
  Filter cleaning:	by means of an air shock cleaning system.
  Partition hatch:	between the filter chamber and pressure/vacuum tank.
  	for emptying the filter chamber.
  	hydraulically operated from the outside.
  Including:	level detectors.
  	stainless steel filter racks with coated, antistatic, polyester needle felt filter bags.



  Vacuum pump

  Type:	tri-lobe blower.
  Air displacement:	52 kW, suitable for 5” (DN 125) hoses.
  Max. vacuum:	70%.
  Drive:	mechanical from a 4-cylinder diesel engine with driveshaft and V-belt transmission.
  Including:	silencers.



  Hydraulic system

  Oil tank:	approx. 11 l.
  Max. pressure:	110 bar.



  Trailer

  Type:	2-axle trailer.
  Axles:	2-axle, independent shock absorbers with 3.5 t. legal limit.
  Rear bumper:	fully openable according to EU standards.
  Electrical system:	12 V, connected according to EU standards.
  Brake system:	according to EU standards, incl. EBS/ABS.
  Preservation:	galvanised.
  Including:	in height adjustable trailer hook coupling.
  	mud-flaps.
  	spare wheel.
  	wheel brake wedge.



  Diesel engine

  On behalf of:	vacuum pump drive.
  Brand/model:	Kubota V3307, Stage 5.
  Power output:	approx. 55 kW (74 Bhp) at 2,400 rpm.
  Fuel tank:	approx. 50 l.
  Including:	exhaust system.



  Standard safety provisions

  Consisting of:

  reinforced standable wheel covers, beacon light, acoustic signal tank lifting and tank cover opening, tank cover positioning sensor, blower inlet and outlet temperature sensors, engine temperature sensor, oil pressure sensors,  exhaust re-generation sensor, pneumatic system and hydraulic pressure sensors and emergency stop.



  Miscellaneous

  Provisions:	working light, operation from 7” touch screen control panel with physical buttons, incl. key for starting engine.
  Preservation:	painted with 2K paint in one standard RAL colour as desired (vacuum tank inside remains unpainted).



  Dimensions

  Length:	approx. 5,250 mm.
  Width:	approx. 2,261 mm.
  Height drive position:	approx. 2,588 mm.
  Height tank lift position:	approx. 3,675 mm.



  Weights

  Empy weight:	approx. 3.5 tonnes.
  Max. permissible weight:	3.5 tonnes.



  Standard version

  2-axle 3.5 ton trailer, galvanized with moveable trailer hook and liftable vacuum tank with engine hatch painted with 2K RAL colour paint.

  Hydraulic openable tank cover plus filter bag system.

  Kubota 4-cylinder diesel engine 55 kW at 2,400 rpm, Stage 5.

  7” touch screen control panel with physical buttons, incl. starting key.

  Tri-lobe blower vacuum pomp, incl. silencer.

  Compressor, incl. discharge assistance kit.
