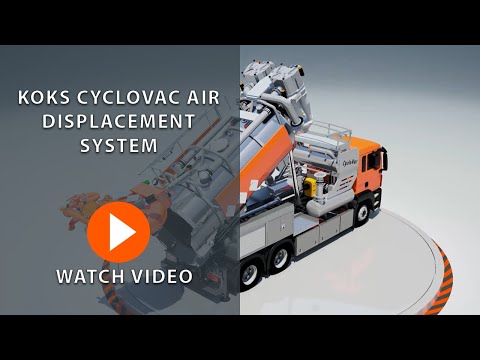

KOKS CYCLOVAC PRO

Air displacement system with cyclone separator

sir-certification.pngudt_cert_certification.pngped-certification.pngrdw-adr-ceoc-certification.pngtuv_certification.pngasme_certification.pngbureau_veritas_certification.png

Articlenumber: 3360

  • Application: solids and liquids (ADR)
  • Suction hose: up to Ø 8 inches
  • Distinctive feature: high dump system (SkyTip)

The KOKS CycloVac Pro air displacement system with cyclone separator is designed for heavy industrial applications and is suitable for suctioning, displacing (option), transporting and discharging dry, wet and hazardous substances, such as various types of catalyst, (roof) gravel, powders, fl y ash and sludge. Specially developed for working with hazardous and contaminated substances, the system is available in PED, ASME, ADR (CEOC) and/or ATEX (Ex) (pump system) versions and built in accordance with all applicable safety standards.

Read more
  • Product Information
  • Specifications
  • Reviews
  • Accessoires
  • Andere uitvoeringen
  • Options
  • Benefits
Information

The KOKS CycloVac Pro air displacement system with cyclone separator is designed for heavy industrial applications and is suitable for suctioning, displacing (option), transporting and discharging dry, wet and hazardous substances, such as various types of catalyst, (roof) gravel, powders, fl y ash and sludge. Specially developed for working with hazardous and contaminated substances, the system is available in PED, ASME, ADR (CEOC) and/or ATEX (Ex) (pump system) versions and built in accordance with all applicable safety standards.



Usage
The KOKS CycloVac Pro is the perfect air displacement system for heavy duty suction, displacement and transportation activities in the construction and (petro) chemical industries and for all general industrial applications.



Characteristics
The powerful tri-lobe blower gives the KOKS CycloVac Pro air displacement system a very high suction and displacement capacity, which makes it possible to process and transport large quantities of dry substances, liquids, gravel, sand, etc. in a very short time. The user benefi ts from signifi cant time savings and a huge reduction in cost.



Versions
The KOKS CycloVac Pro air displacement system can be fitted with various option kits that are appropriate for your needs, for industrial applications and/or for sewer cleaning activities.

Specifications

  • Miscellaneous

    Provisions:working light, hydraulic rear bumper and stainless steel control box/coupling box/tool box.
    Body inspection: arranged by KOKS Group.
    Instruction manual: consisting of operating/maintenance instructions, drawings and schedules.

  • Safety information

Benefits

  • ✔ Easy control.
    ✔ Vacuum with 222 kW, suitable for 8” (DN 200) hoses, max 96% underpressure; blowing with 1,050 mbar overpressure.
    ✔ Self-cleaning cyclone separation keeps the cyclones dust free at all times (patented).
    ✔ Cyclone separation instead of filter separation on behalf of:
    ✔ lower maintenance costs.
    ✔ less resistance (no trouble by filter pollution).
    ✔ more user-friendly suctioning of liquids.
    ✔ Approved in accordance with PED or ADR (CEOC) European type-approval/ASME American type-approval.
    ✔ Built to the latest environmental and safety standards.
    ✔ Optimum balance between a chassis with a short wheelbase and maximum tank capacity.
    ✔ Available as skid.
    ✔ Ergonomic and chassis-independent construction by means of a versatile auxiliary frame and an adjustable pump angle.
    ✔ Vacuum pump is mounted in the middle of the chassis for a better load distribution.
    ✔ Light construction provides a good load distribution and offers the possibility to be assembled on a 3-axle chassis with a large loading capacity.
    ✔ High-quality, long life span and economically justified purchase price.
    ✔ By easy cleaning and exchanging the safety filters, the machine is versatile and various products can be vacuumed up one after the other, without causing pollution.

General properties

  • Number3360

Pressure/vacuum tank

  • Volume pressure/vacuum tank12 m³, excl. cyclone separator.
  • Material pressure/vacuum tankstainless steel AISI 316 grade, material no. 1.4404.
  • Rear door pressure/vacuum tankhydraulically opening and bolting.
  • Discharging pressure/vacuum tankby means of tipping (45°) or air displacement.
  • Loading pressure/vacuum tankby means of suctioning or through the manhole on top.
  • Including pressure/vacuum tank6” suction connection provided with shut-off valve with coupling as desired.
  • 6” discharge connection provided with shut-off valve with coupling as desired, on the rear door (excl. quick exchange system).
  • level detectors.

Cyclone separator device

  • Version cyclone separation device2x 4 cyclones on behalf of separating particles.
  • Provisions cyclone separator deviceseparator tank with a vacuum return system in combination with an air cleaning system (air shock system/air return flow) for cleaning the cyclones and filter elements.
  • Including cyclone separator devicecyclone/filter cleaning by means of a programmed 3 positions pulse time/interval switch, adjustable from the control panel.
  • level indicators (wet/dry) in the collecting receptacles.
  • air current separation system in the separator tank.
  • Safety filter cyclone separation deviceeach cyclone is equipped with its own fine dust safety filter with a standard filter according to group E12 (EN 1822-1:2017) (class M).
  • Cleaning cyclone separator devicedirect cleaning of the cyclones when the filter is removed.

Vacuum pump

  • Type vacuum pumptri-lobe blower.
  • Capacity vacuum pump222 kW, suitable for vacuuming with 8" (DN 200) hoses.
  • Max. vacuum % vacuum pump96
  • Max. overpressure (mbar) Vacuum pump1050
  • Drive vacuum pumpby means of a crank shaft and V-belt transmission from the flywheel PTO.
  • Including vacuum pumpsilencers.

Miscellaneous

  • Provisionsworking light.
  • rear bumper.
  • stainless steel control box.
  • stainless steel hose box.
  • stainless steel tool box.
  • stainless steel coupling box.
  • Inspection of the superstructurearranged by KOKS Group.
  • Includes instructionsinstructions.
  • drawings.
  • schedules.

Dimensions

  • Length (mm)approx. 9.400
  • Width (mm)approx. 2.550
  • Height (mm)approx. 3.950, chassis-dependent.
  • Wheel base (mm)approx. 4.500 + 1.350, chassis-dependent.

Weights

  • Empty weightapprox. 17,6, chassis and version dependent.
  • Max. permissible weightapprox. 33 tonnes (combined with a 33 tonnes 6x4 chassis), depending on the regulations in the country of destination.
