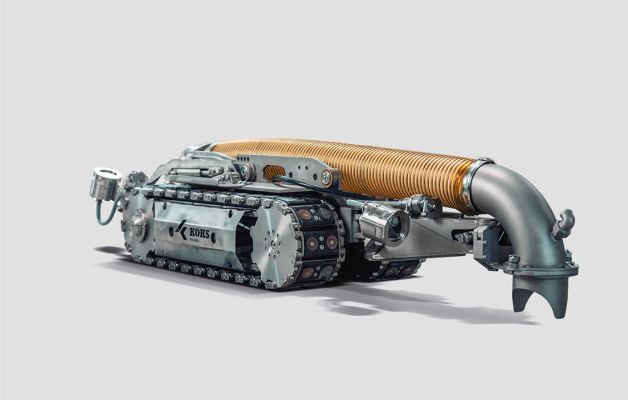

KOKS ADES

Specifications

• The KOKS ADES-robot is intended for cleaning aboveground, underground storage tanks and for cleaning water basins, sewages or other confined spaces in non-ATEX zones. The ADES-robot is utilized in combination with the SAPP (standalone power pack) or TVC (transportable ventilated cabin) together with a vacuum truck for removal and disposal of fluid and hazardous substances, such as liquids, sludge, fats, oils, and chemicals.



  Usage
  The KOKS ADES-robot enables its user to operate in confined spaces. Commonly used for cleaning underground tanks, water basins or sewer pipes in non-ATEX zones, the advantages for health, safety and the environment, as well as an improvement of the cleaning quality, are undeniable.



  Characteristics
  The KOKS ADES-robot is equipped with an inventive hydraulic piston for widening its track width and thus increasing stability where possible. The ADES can be used together with both the SAPP as well as the TVC. In addition, the ADES is available with different types of track plates, making this robot very versatile and efficient. With the robot connected to a vacuum truck large quantities of fluid and solid substances can be processed in a short time and then transported in accordance with latest regulations. The user benefits from significant time savings and a huge reduction in cost.



  Versions
  The KOKS ADES-robot can be delivered with different types of track plates and be equipped with various suction heads and tips which match your needs and/or (industrial) applications.

• Designed and certified for:

  • operation in non-ATEX zones.
  • international protection class IP68.



  Robot

  Type:	ADES-robot.
  Material:	stainless steel AISI 316 grade; material no. 1.4401.
  Max. range:	100 m.
  Traction force:	1,500 N, measured on Fe plate, thickness 10 mm, covered in oil.
  Speed:	0.22 m/sec – 13.2 m/min.
  Submersible depth:	1 m for a period of 30 min. (cameras are the limitation).
  Ambient temperature:	-10°C to 50°C.
  Tracks:	58 pieces, rubberized, sunken magnetic stainless steel track plates (antistatic NBR rubber).
  Arm motion:	45° in horizontal direction.
  	50° in vertical direction.
  Arm force:	1.100 Nm.



  Dimensions robot

  Length:	approx. 1,700 mm.
  Width standard:	approx. 430 mm.
  Width extended:	approx. 600 mm (with manual extension) or 720 mm (with hydraulic extension).
  Height:	approx. 330 mm.
  Height with elevated cameras:	approx. 955 mm.
  Manhole:	18”/450 mm.
  Weight:	approx. 250 kg.



  Cameras

  Type:	image transfer system.
  Resolution:	520 lines, analog.
  Lights:	integrated LED lighting, max. 235 lux.



  Standard version

  • Narrow body, not extendable in width, suitable for 18”/450 mm manhole.
  • Rubberized track plates with stainless steel magnets.
  • 3 cameras with lights mounted on the robot (hydraulically liftable).
  • Fluidizing suction head with 4” camlock connection, incl. suction tip, model bikini.
  • Hydraulic quick coupling
