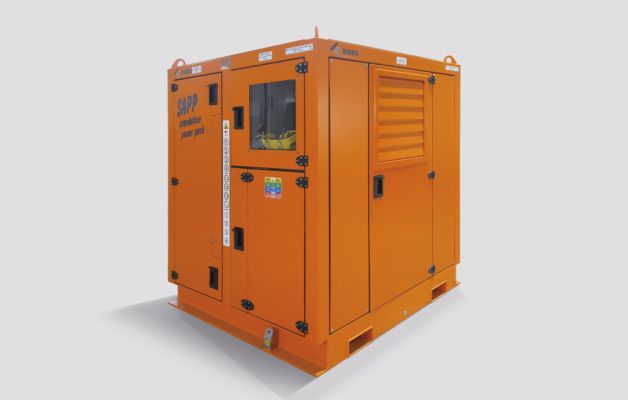

KOKS SAPP

Specifications

• The KOKS SAPP (standalone power pack) is designed to operate with different robots, while placing the SAPP outside the hazardous zone. The SAPP, in combination with the ADEX, ADES EX, ADES or SAKAL-robot, is intended for cleaning aboveground and underground storage tanks, water basins, sewers or other confined spaces. The standalone power pack is available in a container, which is placed outside the hazardous zone in accordance with all applicable safety standards.



  Effort
  The KOKS SAPP-system enables its user to operate the robots (ADEX, ADES EX, ADES or SAKAL) from outside the hazardous zone. Commonly used for cleaning underground (fuel) tanks, water basins or sewers, the advantages for health, safety and the environment, as well as an improvement of the cleaning quality, are undeniable.



  Characteristics
  The KOKS SAPP-system, including 50 m hydraulic antistatic umbilical and 50 m camera and lighting cables in an oil resistant sleeve, can be used interchangeably with the ADEX, ADES EX and ADES-robot (see option 1) and is also suitable for operating the SAKAL-robot (see option 2). From the SAPP-system every movement of the robot can be controlled with the remote control and monitored via the camera screen. The standalone system is easily transportable. The user benefits from significant time savings and a huge reduction in cost.



  Performances
  The KOKS SAPP-standalone power pack will be delivered in a container.

• Designed and certified for:

  • a container, incl. forklift pockets and crane lifting points.
  • use from outside hazardous zones (non-ATEX).



  Standalone powerpack

  Type:	SAPP-container (non-certified).
  Ambient/storage temperature	-20°C to 40°C/-20°C to 60°C.
  Dimensions for transport (l x w x h)	approx. 1,400 x 1,400 x 1,700 mm.
  Weight:	approx. 1,300 kg (excl. robot and all accessories).
  Supply voltage/rated current:	3~400 V, TN-S, 50 Hz/32 A without residual current circuit breaker.
  Max. power consumption with a robot:	14 kW.
  Camera connections:	for 3 camera feeds.
  Control system;	wireless remote control for robot control (non-ATEX) with control/camera panel.
  Max. range:	50 m (hydraulic antistatic umbilical and camera and lighting cables in oil resistant sleeve).



  Hydraulic power pack

  Pressure:	70-100 bar.
  Max. power supply:	6,2 kW.
  Power pack connection:	3x 400 V, 50 Hz.
  Noise level:	max. 80 dB(A).




  Standard version

  • SAPP-container (NOT ATEX certified), basic paint.
  • 50 m hydraulic antistatic umbilical in oil resistant sleeve (radius of action 50 m around the container).
  • 50 m camera and lighting cables in oil resistant sleeve (radius of action 50 m around the container).
  • Hydraulic, automatic winding and unwinding hose reel.
  • Safety drip tray.
  • Wireless remote control for robot control with integrated monitor.
  • Grounding clamps..
  • Colour to be agreed during manufacturing (customized colour).
