KOKS MEGAVAC

  • Vacuum tanker

Article number: 3370

Voor 12:00 uur besteld, morgen in huis

  • Very large filter surface area
  • Easy control
  • Powerful suction and blowing capacity

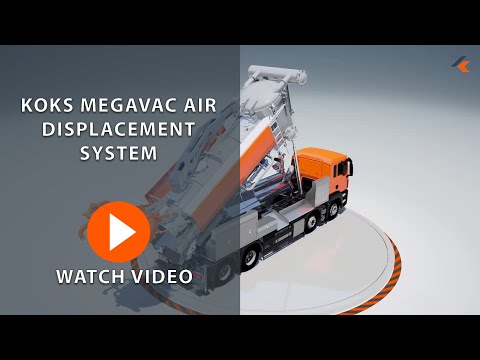

The KOKS MegaVac air displacement system (also called: vacuum tanker) is designed for heavy industrial applications and is suitable for suctioning, displacing, transporting and discharging dry, wet and hazardous substances, such as various types of catalyst, (roof) gravel, powders, fly ash and sludge. Specially developed for working with hazardous and contaminated substances, the system is available in PED, ASME, ADR (CEOC) and/or ATEX (Ex) (pump system) versions and built in accordance with all applicable safety standards.

Read more

Professional advice needed?

Ask one of our specialists.

Tel.: +31 (0)72 540 66 99

E-mail: info@koks.com



Call me back
  • Productinformatie
  • Specificaties
  • Reviews
  • Accessoires
  • Andere uitvoeringen
  • Opties
  • Voordelen
Productinformatie

Specifications

  • The KOKS MegaVac air displacement system (also called: vacuum tanker) is designed for heavy industrial applications and is suitable for suctioning, displacing, transporting and discharging dry, wet and hazardous substances, such as various types of catalyst, (roof) gravel, powders, fly ash and sludge. Specially developed for working with hazardous and contaminated substances, the system is available in PED, ASME, ADR (CEOC) and/or ATEX (Ex) (pump system) versions and built in accordance with all applicable safety standards.


    Effort
    The KOKS MegaVac is the perfect vacuum tanker for heavy duty suction, displacement and transportation activities in the construction and (petro)chemical industries and for all general industrial applications.



    Characteristics
    The powerful tri-lobe blower gives the KOKS MegaVac vacuum tanker a very high suction and displacement capacity, which makes it possible to process and transport large quantities of dry substances, liquids, gravel, sand, etc. in a very short time. The user benefits from significant time savings and a huge reduction in cost.



    Performances
    The KOKS MegaVac vacuum tanker can be fitted with various option kits that are appropriate for your needs, for industrial applications and/or for sewer cleaning activities.

  • Designed and certified for:

    • assembly on a 4-axle, min. 400 HP chassis.
    • suctioning, displacing, transporting and discharging dry, wet and hazardous substances, such as sludge, sand, (roof) gravel, fly ash, powders and various types of liquids.
    • PED (Pressure Equipment Directive) in accordance with 2014/68/EU standards.



    Pressure/vacuum tank

    Volume: 15 m³, excluding filter chamber.
    Material: stainless steel AISI 304 grade, material no. 1.4301.
    Rear door:  hydraulically opening and bolting.
    Discharging: by means of tipping (45°) or air displacement.
    Loading: by means of suctioning or through the manhole on top.
    Including: 8” suction connection with 6” valve, provided with an 8” elbow with replaceable Hardox wear resistant plate.
      blowing cover, with quick-exchange system.
      level detectors.



    Filter chamber

    Filter cover: hydraulically opening and manually bolting.
    Filter surface area:  46 m².
    Filter plate:  stainless steel.
    Filter cleaning: by means of an air shock cleaning system.
    Partition hatch:  between the filter chamber and pressure/vacuum tank.
      for emptying the filter chamber.
      operated hydraulically from the outside.
    Including: side manhole.
      level detectors.
      stainless steel filter racks with coated, antistatic, polyester needle felt filter bags.



    Vacuum pump

    Type: Roots blower.
    Air displacement: 8.100 m³/uur (220 kW).
    Max. vacuum: 96%.
    Max. overpressure:  1.050 mbar.
    Drive: transfer gearbox and V-belt transmission.
    Including: silencers..



    Dimensions

    Length: approx. 10,800 mm.
    Width: approx. 2,500 mm.
    Height: approx. 3,950 mm, chassis-dependent.
    Wheelbase:  approx. 5,900 mm (axle 1- axle 3) + 1,400 mm, chassis-dependent.



    Weights

    Empty weight: approx. 21 tonnes, chassis and version-dependent.
    Max. permissible weight:  approx. 37 tonnes, depending on the regulations in the country of destination.



    Standard safety provisions

    Consisting of: rupture disc, hose rupture safety valves on behalf of the rear door and tipping cylinder, beacon light, emergency stop, repair cross beam, catwalk, rear door clamp protection, earth reel, emergency stop reel, rear door protection, tipping protection and powder extinguisher.



    Miscellaneous

    Provisions: working light, hydraulic rear bumper and stainless steel control box/coupling box/tool box.
    Body inspection: arranged by KOKS Group.
    Instruction manual:  consisting of operating/maintenance instructions, drawings and schedules.
  • Safety information

Options

  • KM-01-A High pressure kit
    KM-01-B  High pressure kit
    KM-02 SIR kit
    KM-03 SkyTip kit
    KM-04-A Discharge assistance kit
    KM-04-B Discharge assistance kit
    KM-05-A Compressor kit
    KM-05-B Compressor kit
    KM-06 Liquid kit
    KM-08  Nitrogen inert system
    KM-09 Safety filter
    KM-10 Tank material
    KM-11 Positive displacement system
    KM-12 Hydraulically hinged bumper
    KM-14 KSS kit (KOKS Safety Standard)
    KM-15 Liquid cover with additional (3rd) valve
    KM-16 Container trailer
    KM-18 Vacuum-box big bag filler unit
    KM-20-A Telescopic suction boom
    KM-20-B Telescopic suction boom
    KM-22 Excavation arm
    KM-23 Diesel engine Stage 3
    KM-25 ADR (CEOC) kit
    KM-27 CSC container inspection

Benefits

  • ✔ Easy control.
     Suction with 8,100 to 10,000 m³/h, max 96% underpressure; blowing with 1,050 mbars overpressure.
     Very large filter surface area (46 m²).
    ✔ Large discharge hatch which can be operated from the outside, plus a filter cover which can be opened and closed hydraulically.

    Ergonomic.
     Approved in accordance with ASME American type-approval/PED or ADR (CEOC) European type-approval.
     Built to the latest environmental and safety standards.
    ✔ Responsible transportation in accordance with ASME/ADR (CEOC) regulations.
     Optimum balance between a chassis with a short wheelbase and maximum tank capacity.
     Solid construction and components for high power and maximum payload.
     High quality, long service life and economical purchase price.
